Categorical Variables and Interaction Terms in Regression

Extend linear regression to handle categorical predictors with multiple levels and interaction terms, using a real earnings dataset to explore how the age–earnings profile differs by gender.

Introduction to Regression in R Step 4 of 4 ← Regression Diagnostics View full track →

1 Introduction

The Linear Regression in R tutorial covered simple and multiple regression with continuous predictors. Most real datasets also contain categorical variables — gender, region, industry, educational attainment — and ignoring them means omitting potentially important predictors or misspecifying the model.

This tutorial covers two extensions:

1. Categorical predictors — how to include a variable with two or more discrete categories and interpret the resulting coefficients
2. Interaction terms — how to allow the effect of one variable to vary depending on the value of another

We use a subset of the 2014 US Current Population Survey (CPS), focusing on market research analysts. The running question is: what determines weekly earnings, and does the age–earnings profile look the same for men and women?

1.1 Data and packages

NoteGetting the data

The CPS MORG 2014 file (morg-2014-emp.csv) is from Békés & Kézdi (2021) Data Analysis for Business, Economics, and Policy. Download it from gabors-data-analysis.com and place it in a data/ subfolder next to this file.

library(tidyverse)
library(modelsummary)
library(flextable)

We start with the same data preparation used in the base regression tutorial, keeping a few extra variables:

cps_raw <- read_csv("data/morg-2014-emp.csv")

cps <- cps_raw |>
  filter(occ2012 == 735) |>        # market research analysts only
  filter(age >= 24, age <= 64) |>  # working-age adults
  filter(uhours >= 20) |>          # at least part-time
  mutate(
    college = ifelse(grade92 >= 43, 1, 0),   # binary college indicator
    female  = ifelse(sex == 2, 1, 0),         # 1 = female, 0 = male
    age_sq  = age^2
  ) |>
  select(earnwke, age, age_sq, uhours, college, female, grade92) |>
  drop_na()

2 Binary Predictors

2.1 Adding gender to a regression

The simplest categorical predictor is binary — a 0/1 indicator. Adding female to the wage model is straightforward:

m3 <- lm(earnwke ~ age + age_sq + uhours + college,          data = cps)
m4 <- lm(earnwke ~ age + age_sq + uhours + college + female, data = cps)

modelsummary(
  list("Without gender" = m3, "With gender" = m4),
  gof_omit = "AIC|BIC|Log|F|RMSE",
  stars = TRUE
)

	Without gender	With gender
+ p < 0.1, * p < 0.05, ** p < 0.01, *** p < 0.001
(Intercept)	-2497.224***	-2418.560***
	(530.026)	(534.353)
age	85.030**	86.114***
	(25.737)	(25.741)
age_sq	-0.830**	-0.843**
	(0.305)	(0.305)
uhours	37.572***	36.316***
	(4.631)	(4.762)
college	313.155**	315.911**
	(97.216)	(97.195)
female		-83.293
		(74.141)
Num.Obs.	252	252
R2	0.327	0.330
R2 Adj.	0.316	0.317

2.2 Interpreting the binary coefficient

The coefficient on female is the estimated earnings difference between female and male analysts of the same age, working the same hours, with the same education level. Read it as:

“Holding age, hours, and education constant, female market research analysts earn approximately $83 per week less than their male counterparts.”

A useful check: always look at what happens to the other coefficients when you add a new variable. If the age coefficient shifted, that is the omitted variable bias story in action — the omitted variable (female) was correlated with both age and earnings.

2.3 Looking at the raw gap first

Before any regression, a simple group summary anchors your interpretation:

cps |>
  mutate(gender = ifelse(female == 1, "Female", "Male")) |>
  group_by(gender) |>
  summarise(
    n            = n(),
    mean_earnwke = mean(earnwke) |> round(0),
    median_earn  = median(earnwke)
  ) |>
  flextable() |>
  theme_vanilla()

gender	n	mean_earnwke	median_earn
Female	151	1,199	1,115.38
Male	101	1,418	1,307.00

The regression-adjusted gap will differ from this raw difference because the regression holds other predictors constant. Understanding the difference tells you which controls are doing the most work.

3 Categorical Variables with Multiple Levels

3.1 Beyond binary: a three-category education variable

The binary college variable collapses all post-secondary education into one step. The CPS grade92 variable distinguishes bachelor’s degrees from graduate degrees — a richer measure.

cps <- cps |>
  mutate(
    edu_cat = case_when(
      grade92 <  43 ~ "No degree",
      grade92 <= 44 ~ "Bachelor's",
      grade92 >= 45 ~ "Graduate"
    ),
    edu_cat = factor(edu_cat, levels = c("No degree", "Bachelor's", "Graduate"))
  )

cps |>
  count(edu_cat) |>
  flextable() |>
  theme_vanilla()

edu_cat	n
No degree	43
Bachelor's	202
Graduate	7

ImportantThe reference category

When a factor variable enters a regression, R automatically drops one level — the reference category — and estimates coefficients for all others relative to it. Here, "No degree" is the reference because we placed it first in levels = c(...). Always set the reference category explicitly rather than relying on alphabetical order.

3.2 Fitting and interpreting the model

m5 <- lm(earnwke ~ age + age_sq + uhours + edu_cat + female, data = cps)
modelsummary(m5, gof_omit = "AIC|BIC|Log|F|RMSE", stars = TRUE)

	(1)
+ p < 0.1, * p < 0.05, ** p < 0.01, *** p < 0.001
(Intercept)	-2370.647***
	(531.433)
age	84.683**
	(25.585)
age_sq	-0.838**
	(0.303)
uhours	36.289***
	(4.731)
edu_catBachelor's	295.116**
	(97.103)
edu_catGraduate	739.085**
	(228.111)
female	-74.917
	(73.778)
Num.Obs.	252
R2	0.341
R2 Adj.	0.325

Each edu_cat coefficient measures earnings relative to the "No degree" group, holding all other variables constant:

• edu_catBachelor's: how much more a bachelor’s-educated analyst earns compared to one with no degree
• edu_catGraduate: how much more a graduate-educated analyst earns compared to one with no degree

The difference between bachelor’s and graduate earnings is not directly in the table — calculate it from the coefficients:

coefs <- coef(m5)
grad_vs_ba <- coefs["edu_catGraduate"] - coefs["edu_catBachelor's"]
cat("Graduate vs. bachelor's premium:", round(grad_vs_ba, 1), "USD/week\n")

Graduate vs. bachelor's premium: 444 USD/week

4 Interaction Terms

4.1 Motivation: do slopes differ across groups?

Models m4 and m5 assume the age–earnings profile has the same shape for men and women — only the level differs (captured by female). This is the parallel slopes assumption. But perhaps the age slope is steeper for men: if women are more likely to take career breaks, their earnings may grow more slowly with age.

Always visualise the question before fitting an interaction:

cps |>
  mutate(gender = ifelse(female == 1, "Female", "Male")) |>
  ggplot(aes(x = age, y = earnwke, colour = gender)) +
  geom_point(alpha = 0.3, size = 1) +
  geom_smooth(method = "lm", se = FALSE) +
  scale_colour_manual(values = c("Male" = "#00395B", "Female" = "#69AACD")) +
  labs(
    x      = "Age",
    y      = "Weekly earnings (USD)",
    colour = NULL,
    title  = "Are the age–earnings slopes the same for men and women?"
  ) +
  theme_minimal()

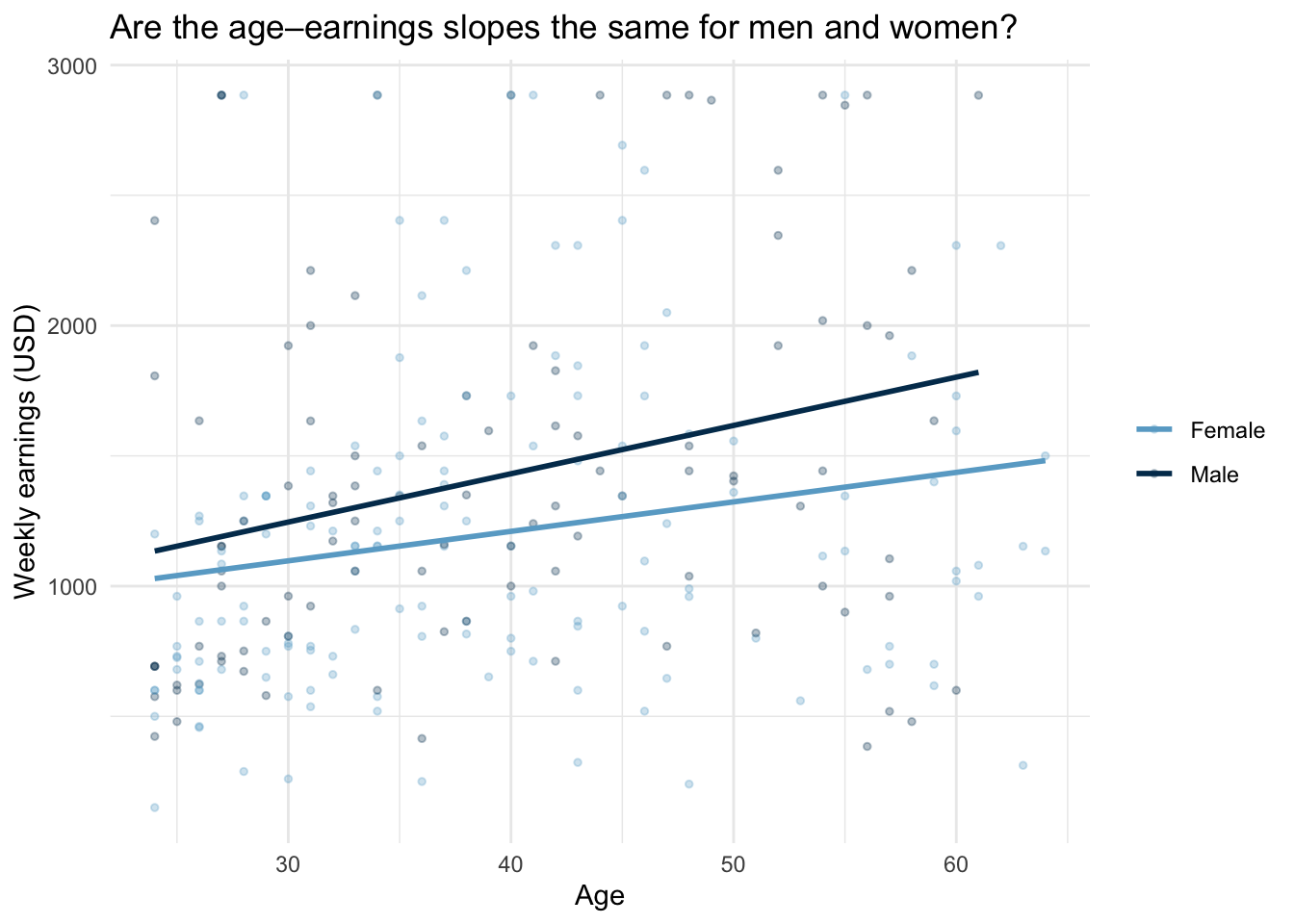

Figure 1: Age and weekly earnings by gender, market research analysts (CPS 2014). Are the slopes parallel?

4.2 Fitting the interaction

The * operator in lm() is shorthand: age * female expands to age + female + age:female. The age:female term is the interaction.

m6 <- lm(earnwke ~ age * female + age_sq + uhours + edu_cat, data = cps)
modelsummary(m6, gof_omit = "AIC|BIC|Log|F|RMSE", stars = TRUE)

	(1)
+ p < 0.1, * p < 0.05, ** p < 0.01, *** p < 0.001
(Intercept)	-2419.504***
	(538.403)
age	84.718**
	(25.619)
female	76.860
	(264.996)
age_sq	-0.810**
	(0.306)
uhours	36.349***
	(4.738)
edu_catBachelor's	295.184**
	(97.231)
edu_catGraduate	731.087**
	(228.805)
age × female	-3.871
	(6.490)
Num.Obs.	252
R2	0.342
R2 Adj.	0.324

4.3 Interpreting the interaction coefficient

The model now contains three age-related components:

Term	What it measures
age	age slope for men (female = 0)
female	earnings level gap at age = 0 (not meaningful on its own)
age:female	extra slope for women — how the age slope differs for women

Group-specific slopes:

b <- coef(m6)
slope_men   <- b["age"]
slope_women <- b["age"] + b["age:female"]

cat("Age slope for men:  ", round(slope_men,   2), "USD/week per year\n")

Age slope for men:   84.72 USD/week per year

cat("Age slope for women:", round(slope_women, 2), "USD/week per year\n")

Age slope for women: 80.85 USD/week per year

cat("Difference (interaction coefficient):", round(b["age:female"], 2), "\n")

Difference (interaction coefficient): -3.87

Important

Always report the group-specific slopes alongside (or instead of) the interaction coefficient itself. The interaction coefficient is only meaningful relative to the reference group; readers need the actual slopes to understand the substantive result.

5 Putting It All Together

5.1 A publication-ready comparison table

coef_labels <- c(
  "age"                = "Age",
  "age_sq"             = "Age²",
  "uhours"             = "Weekly hours",
  "college"            = "College degree",
  "female"             = "Female",
  "edu_catBachelor's"  = "Bachelor's degree",
  "edu_catGraduate"    = "Graduate degree",
  "age:female"         = "Age × Female",
  "(Intercept)"        = "Constant"
)

modelsummary(
  list(
    "M3: Base"       = m3,
    "M4: + Gender"   = m4,
    "M5: + Edu cat." = m5,
    "M6: Interaction"= m6
  ),
  coef_map = coef_labels,
  gof_map  = c("nobs", "r.squared", "adj.r.squared"),
  stars    = TRUE,
  notes    = "CPS 2014. Market research analysts and marketing specialists (occ2012 = 735), age 24–64, usual weekly hours >= 20."
)

Table 1: Weekly earnings of market research analysts: regression results (CPS 2014)

	M3: Base	M4: + Gender	M5: + Edu cat.	M6: Interaction
+ p < 0.1, * p < 0.05, ** p < 0.01, *** p < 0.001
CPS 2014. Market research analysts and marketing specialists (occ2012 = 735), age 24–64, usual weekly hours >= 20.
Age	85.030**	86.114***	84.683**	84.718**
	(25.737)	(25.741)	(25.585)	(25.619)
Age²	-0.830**	-0.843**	-0.838**	-0.810**
	(0.305)	(0.305)	(0.303)	(0.306)
Weekly hours	37.572***	36.316***	36.289***	36.349***
	(4.631)	(4.762)	(4.731)	(4.738)
College degree	313.155**	315.911**
	(97.216)	(97.195)
Female		-83.293	-74.917	76.860
		(74.141)	(73.778)	(264.996)
Bachelor's degree			295.116**	295.184**
			(97.103)	(97.231)
Graduate degree			739.085**	731.087**
			(228.111)	(228.805)
Age × Female				-3.871
				(6.490)
Constant	-2497.224***	-2418.560***	-2370.647***	-2419.504***
	(530.026)	(534.353)	(531.433)	(538.403)
Num.Obs.	252	252	252	252
R2	0.327	0.330	0.341	0.342
R2 Adj.	0.316	0.317	0.325	0.324

Things to notice:

1. R² vs. adjusted R²: R² never decreases when you add variables. Adjusted R² penalises model complexity. Compare M4 and M5: does the finer education measure improve fit net of the added parameters?
2. Coefficient stability: How much does the age coefficient shift when gender is added in M4? Large shifts signal that the omitted variable was correlated with both age and earnings.
3. The interaction in M6: Is Age × Female statistically significant? If so, the parallel-slopes assumption of M4 and M5 is rejected by the data.

5.2 Plain-language summary

Weekly earnings for market research analysts rise with age, but the increase is somewhat slower for women than for men. A female analyst earns substantially less than a comparable male analyst even after accounting for age, hours worked, and education level. Analysts with graduate degrees earn meaningfully more than those without a bachelor’s degree. That said, this analysis covers a single occupation in a single year — patterns may differ in other fields or time periods.

Note🎓 MA / PhD

Standardised coefficients allow comparison of effect sizes across variables measured in different units. Use modelsummary(..., standardize = "refit") or compute them manually by dividing each coefficient by (SD of X / SD of Y). Useful when comparing the “importance” of age vs. education, but note that standardisation changes the interpretation — coefficients then reflect the effect of a one-standard-deviation change in the predictor.

Marginal effects at representative values (MER): rather than reporting the single interaction coefficient, compute the gender gap at specific ages (e.g., 30, 40, 50) using marginaleffects::avg_slopes() or predictions(). This makes the interaction interpretable for a non-technical audience.

6 Practice

Consolidate these skills with the exercise on predicting firm exit — that exercise uses the same regression building blocks in a different domain.

7 Further Reading

• Bekés, G. & Kézdi, G. (2021). Data Analysis for Business, Economics, and Policy. Ch. 7–8. gabors-data-analysis.com
• James, G. et al. (2021). An Introduction to Statistical Learning. Ch. 3 (Linear regression with qualitative predictors and interactions). statlearning.com
